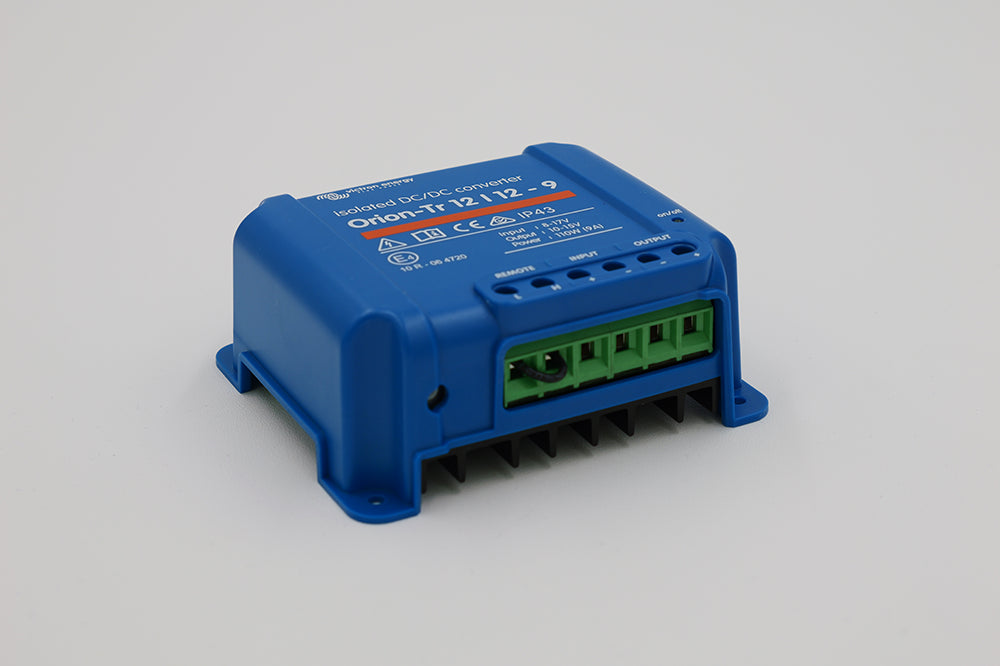

Victron Orion-Tr 12/12-9 DC DC Konverter isoliert 12V 9A 110W

Victron Energy BatteryProtect BP-100 undervoltage protection for emergency and special vehicles

Technical specifications:

• Maximum uninterrupted load current : 100A

• Peak current ( during 30 seconds): 600 A

• Operating voltage range: 6 - 35 V

• Power Consumption: When on: 1.5mA . When off or after low voltage shutdown : 0.6 mA

• Alarm output delay: 12 seconds

• Maximum load at Alarm output: 50 mA (short-circuit proof)

• Load off delay: 90 seconds

• Reconnect Delay: 30 seconds

• Default Thresholds: Turn off: 10.5V or 21V Turn on: 12V or 24V

• Operating temperature range : Full load: - 40°C to +40°C (up to 60 % of the nominal value of the load at 50°C)

• Protection class: Electronics: IP67 (encapsulated) Connections: IP00

• Screw terminals : M8

• Weight: 0.5kg

• Dimensions (HxWxD): 59x42x115mm _


BatteryProtect is not designed for reverse currents from chargers
